Stamping Dies & Precision Tooling Storage
Secure, Organized Storage for Stamping Dies and Tooling
Dies, jigs, and molds need secure individual support, safe crane or forklift access, and an organization that speeds up die changes. Dexco designs structural steel die storage racks for loads ranging from 2,000 to more than 80,000 pounds.
Cut Die-Change Time
Dies stored on the floor are slow to locate and move between jobs. Organized rack storage keeps every die accessible by size or use, so changeovers move faster.
Protect Precision Tooling
Stacking heavy dies damages precision surfaces and shortens tool life. Engineered support holds each die securely, so condition and accuracy hold up over time.
Clear The Floor
Dies left on the production floor consume space and create hazards. Vertical rack storage reclaims square footage and keeps walkways and work areas open.
Handle Heavy Loads
We design around your die weights, crane or forklift access, and press-line layout. The result is a system that safely handles your heaviest tooling.
Engineered Layouts and Specifications
Die and tooling storage is engineered to your tooling and your shop floor. Below are common Dexco layout configurations, the structural specifications behind them, and how each works with your handling equipment. Every system is custom-designed by our engineering team.
Common layout configurations
Each layout is engineered to your die weights, sizes, and handling method. Many shops combine configurations by zone or by press line.
Click any image to enlarge

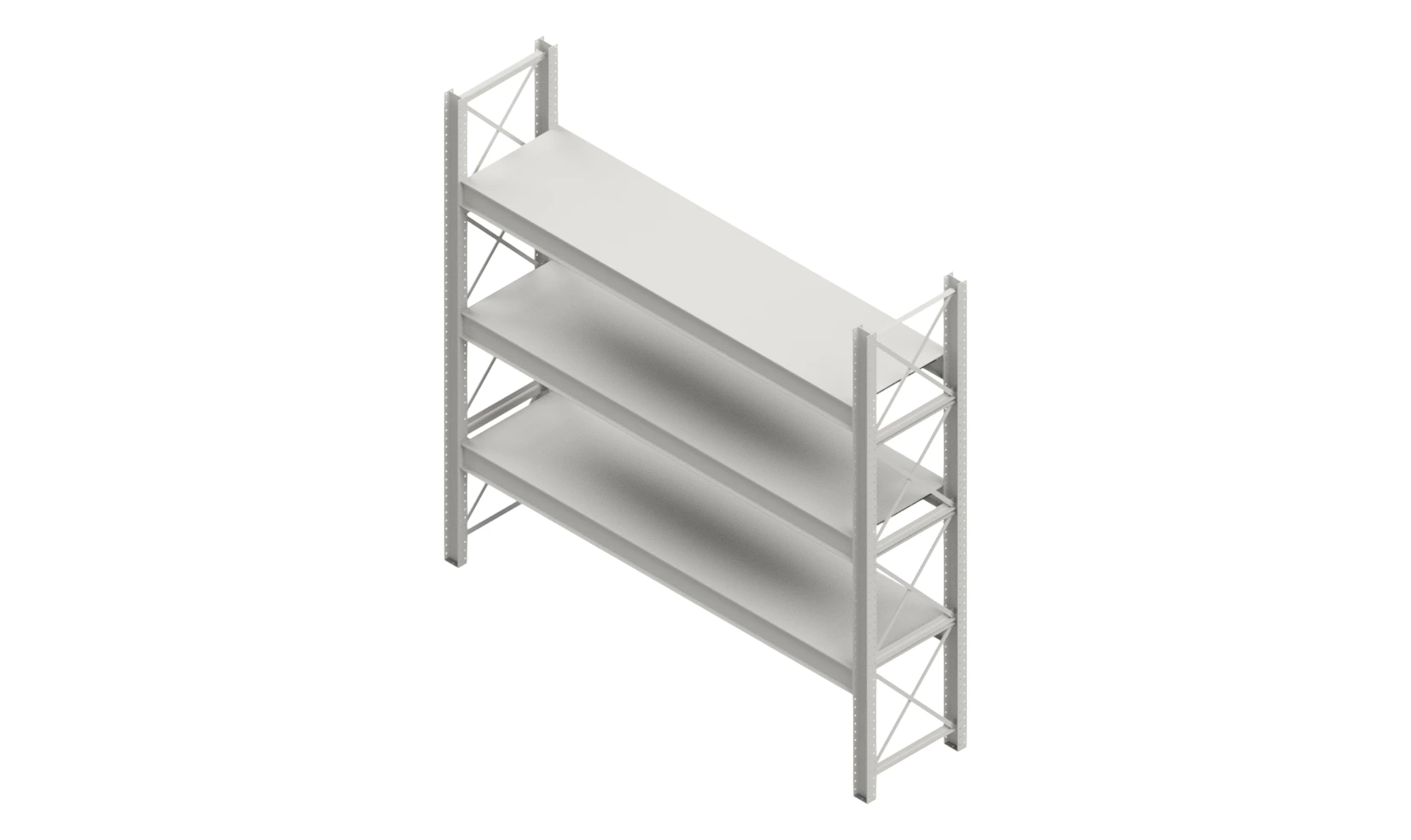

Wide Span Solid Deck Shelf

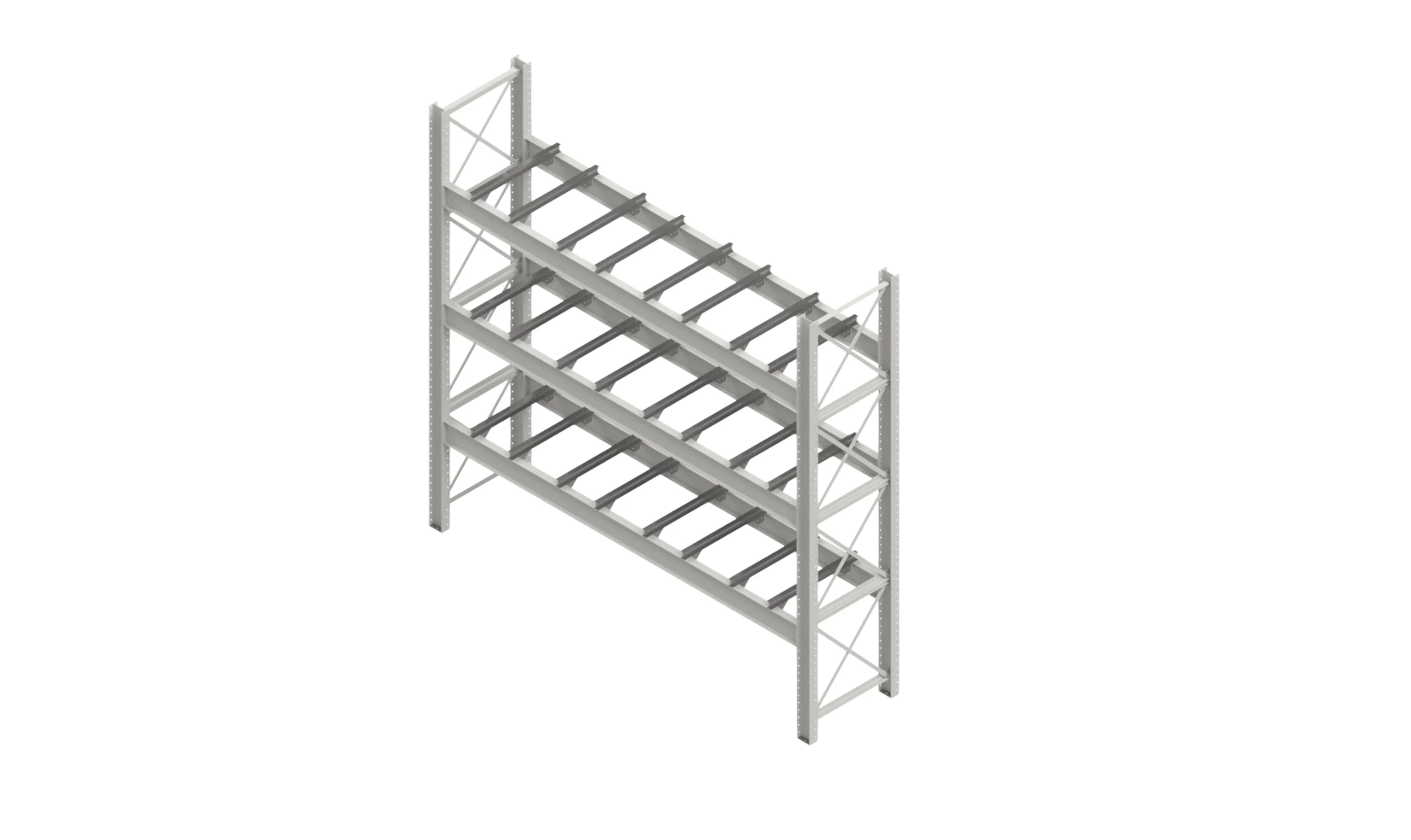

Wide Span with Forklift Entry Bars

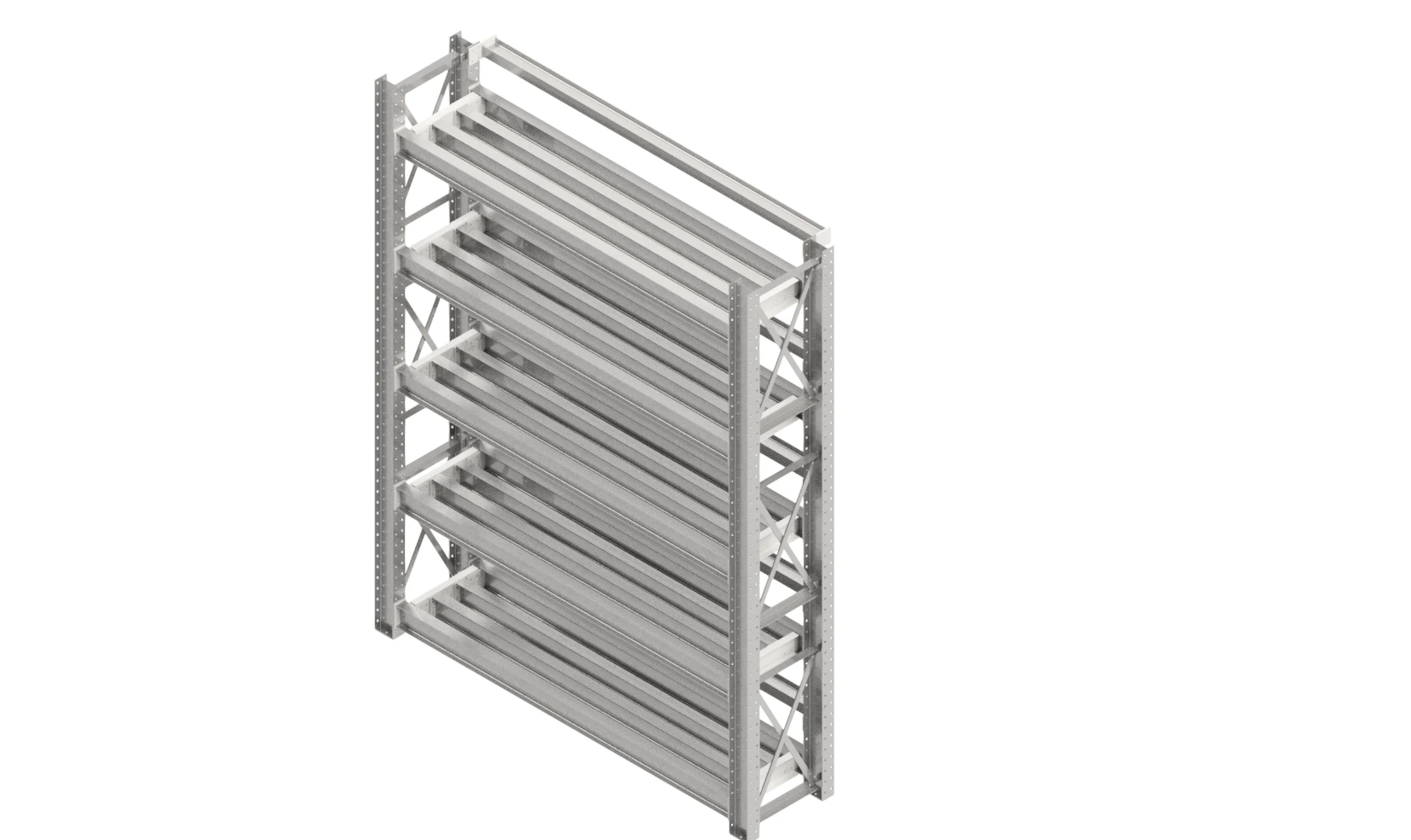

Wide Span with Open Beams

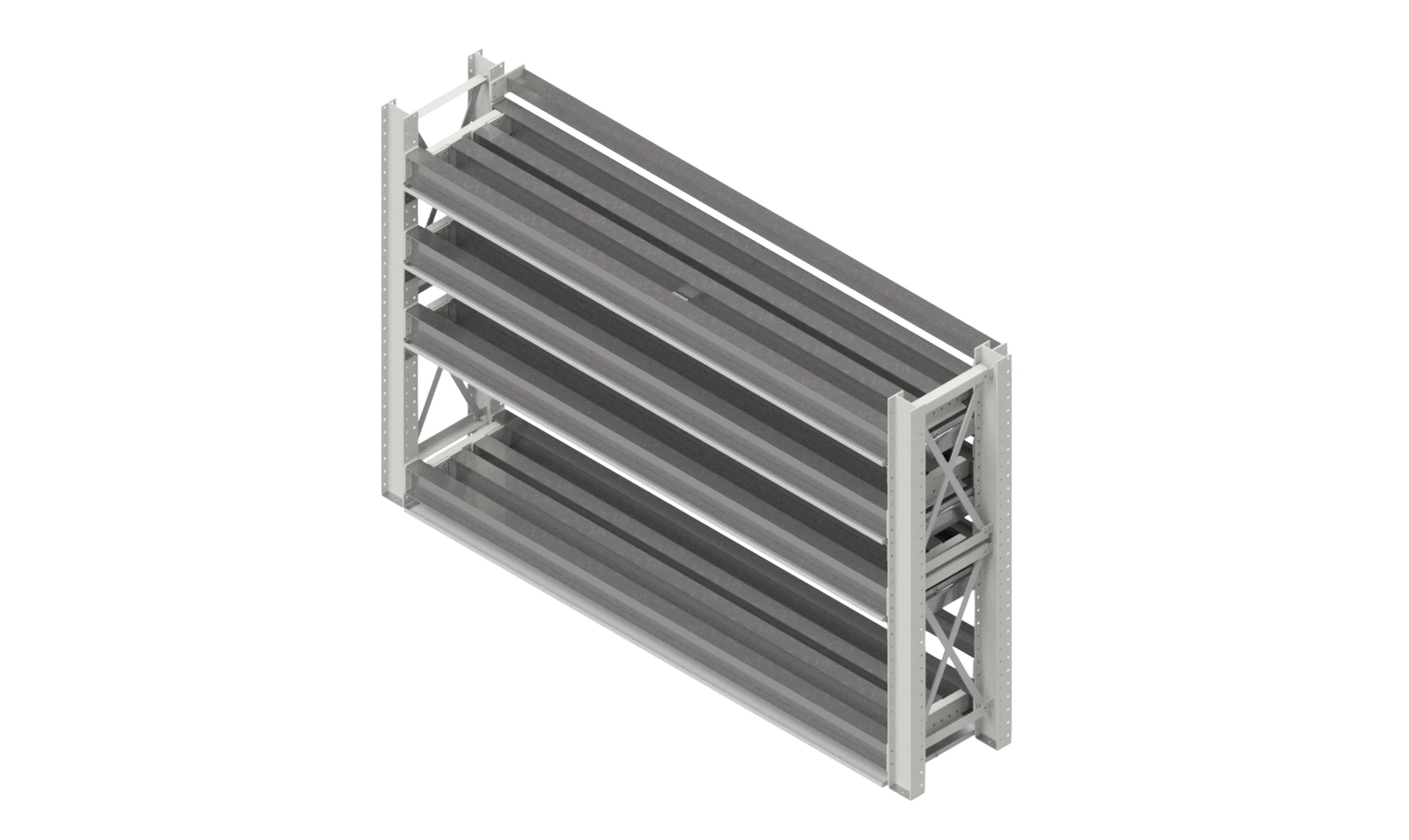

Wide Span Rack with Oil Catch Pan
Combination Wide Span Rack System

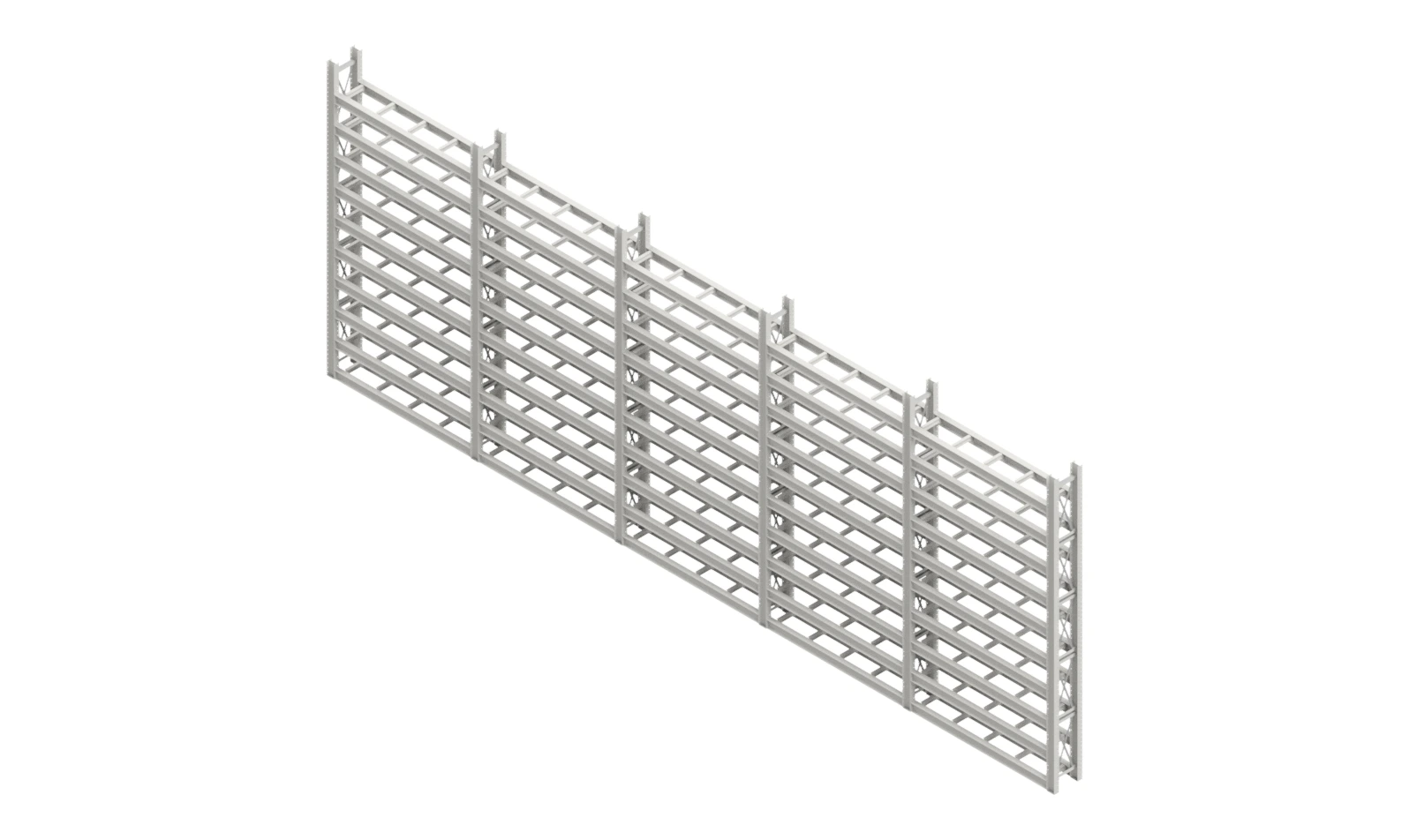

Full Aisle Wide Span System
Material handling and access
The right layout depends on how your team moves dies in and out. Dexco systems are engineered around your equipment and press-line workflow.
- Optimized die access during loading and unloading to speed up changeovers
- Compatible with forklifts, cranes, hoists, and automated handling systems
- Store dies in multiple orientations to match your production workflow
- Heavy tooling held securely off the floor to reduce strain and accident risk
- Organize by size, project, or use frequency so the right die is always reachable
Structural specifications
Standard construction
- Structural I-beam framing with bolt-together bracing for lateral rigidity
- Engineered to support tooling loads from 2,000 to 80,000+ lbs per tier
- Bolted shelf beams adjust in 4-inch increments as tooling needs change
- Beams attach to columns with ASTM A325 structural bolts
- Predrilled baseplates allow a secure anchor-bolt connection to the floor
- Modular bays add easily; bundled columns and beams ship cost-effectively
- Factory-applied powder-coat finish for rust and wear protection
Available options
- Shelf-beam adjustment in 3-inch increments
- Backstop beams to keep dies from being pushed off the back
- Single or double-sided models
- Open beams, solid decks, forklift entry bars, or removable panels
- Oil catch pans for fluid containment and facility compliance
- Hot-dip galvanized coating for corrosion protection
- Standard designs for shorter lead times, or custom engineering for unique needs
Storing 60,000-lb dies that move several times a week? That is exactly the kind of requirement our engineering team designs around. Share your specs, and we will scope it!
Proven Ways to Store Dies & Tooling
Not sure which fits? Share your weights, diameters, and handling method, and we’ll recommend the right platform.
Widespan Racking Systems
Store stamping dies, molds, fixtures, and tooling in organized, individual locations. A flexible solution for a wide range of sizes, weights, and storage requirements.
Floor Racking Systems
Keep heavy dies at ground level for direct loading with forklifts and cranes. Ideal for large tooling that doesn’t require elevated storage.
Cantilever Racking Systems
Provide open access for long tooling, fixtures, and specialized equipment—a practical solution when accessibility is the priority.
Die and Tooling Storage We’ve Engineered

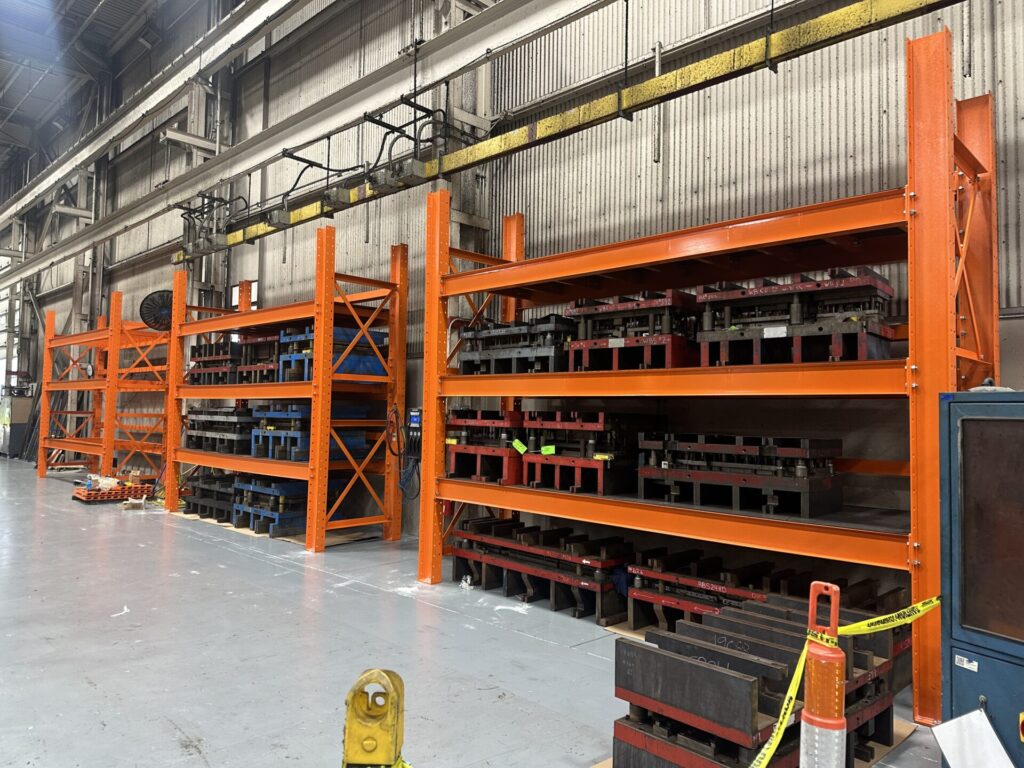

Reclaimed production floor space with die racks
Organized, safe storage for a stamping operation
Improved efficiency with engineered material storage
Common Questions About Die and Tooling Racking
How much weight can a die storage rack hold?
Dexco die racks are engineered to support from 2,000 to 80,000+ lbs per tier, with the exact rating set by your die weights and stacking. Each system is engineered to your specific load with appropriate safety factors built in.
How should heavy stamping dies be stored?
Heavy dies are best stored individually on engineered support arms or shelves, organized by size, project, or use frequency. Storing each die separately protects precision surfaces, speeds up die changes, and keeps the floor clear.
How do die racks help reduce die-change downtime?
When every die has a dedicated, labeled location organized by size or use, operators spend less time locating and moving tooling between jobs. Engineered access also lets cranes and forklifts load and unload dies quickly and safely.
Can one system store dies, molds, jigs, and other tooling together?
Yes. Combination shelving lets you mix open beams, solid decks, fork entry bars, and oil catch pans on different levels of the same rack, so a single system handles a varied tooling inventory and adapts as it changes.
What handling equipment works with die racks?
Dexco die racks are compatible with forklifts, cranes, hoists, and automated handling systems. We factor your equipment and press-line layout into the design so loading and retrieval are safe and direct.
Can die racks be used in wash-down or oily environments?
Yes. Oil catch pans contain fluids from oiled dies, and a hot-dip galvanized finish resists corrosion in harsh or outdoor conditions for long-term performance.
Tell us about your dies and tooling
Share your stamping dies and tooling sizes, weights, handling method, and project requirements.
Our team will review your requirements and recommend a storage system designed for your operation.
