Pipe & Tube Storage
Organized Storage for Pipe & Tube
Cantilever arms and floor stanchion bays hold each run contained and separated with clear forklift or crane access. Dexco builds structural steel systems to your diameters, lengths, and weights for steel pipe, PVC, and bundled long stock.
Stop the Roll
Round stock rolls, shifts, and slides off unsupported piles. Stop bars and contained bays hold every run in place so pipe stays put, and crews stay safe.
Handle Full Bundles
Loose and banded bundles need support that spans their length. Open arms and beam bays carry full loads without sagging, crushing, or ovaling the pipe.
Separate Diameters
Mixed sizes nested in one pile mean digging for the right run. Tiered arms and divided bays keep each diameter and grade sorted and ready to pull.
Pipe Racking Specifications
Common layout configurations
Each layout is engineered to your pipe diameters, lengths, and handling method. Many operations combine cantilever and floor bays by size or by turn rate.
Click any image to enlarge
Cantilever

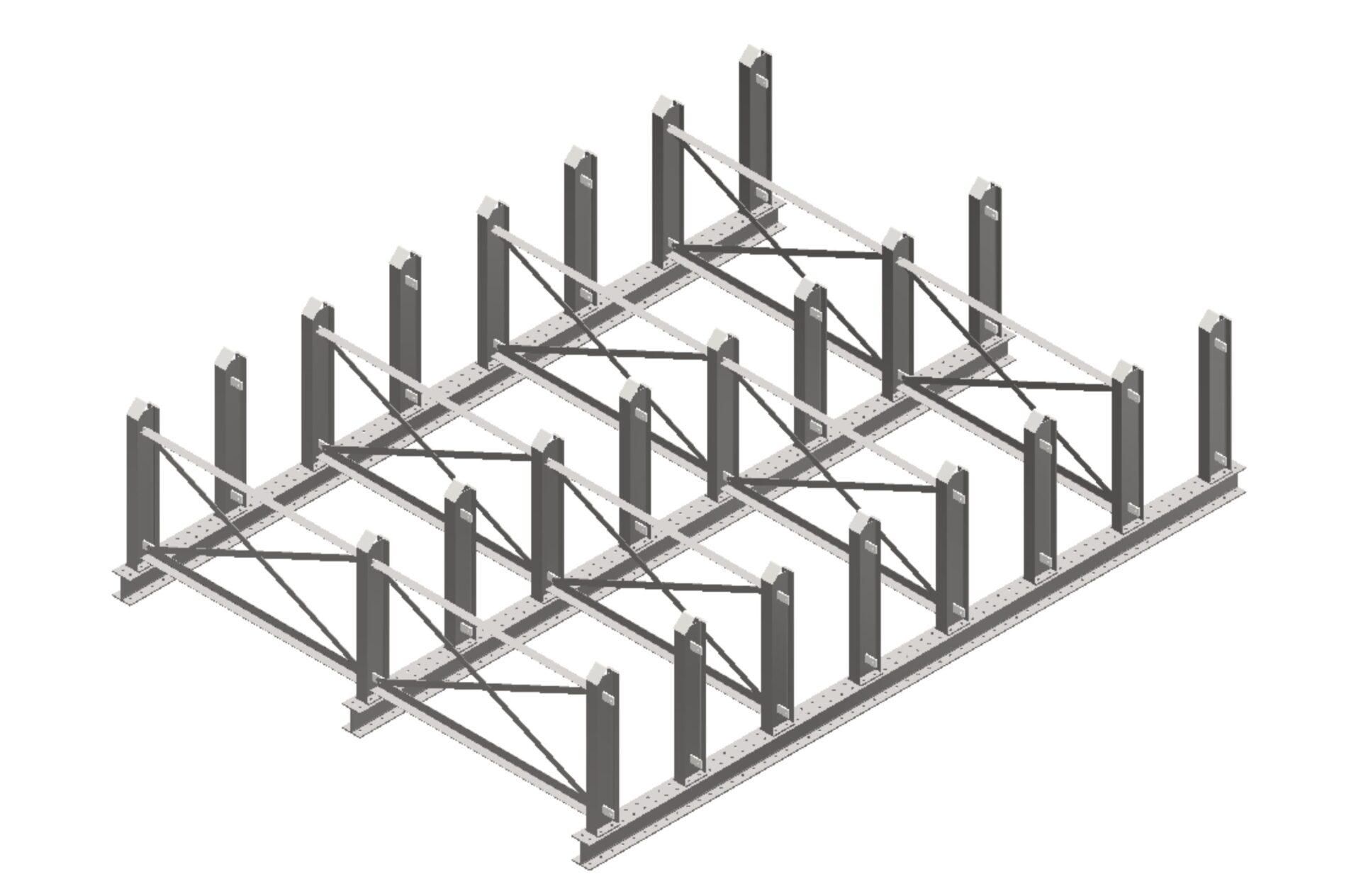

Custom Floor Rack

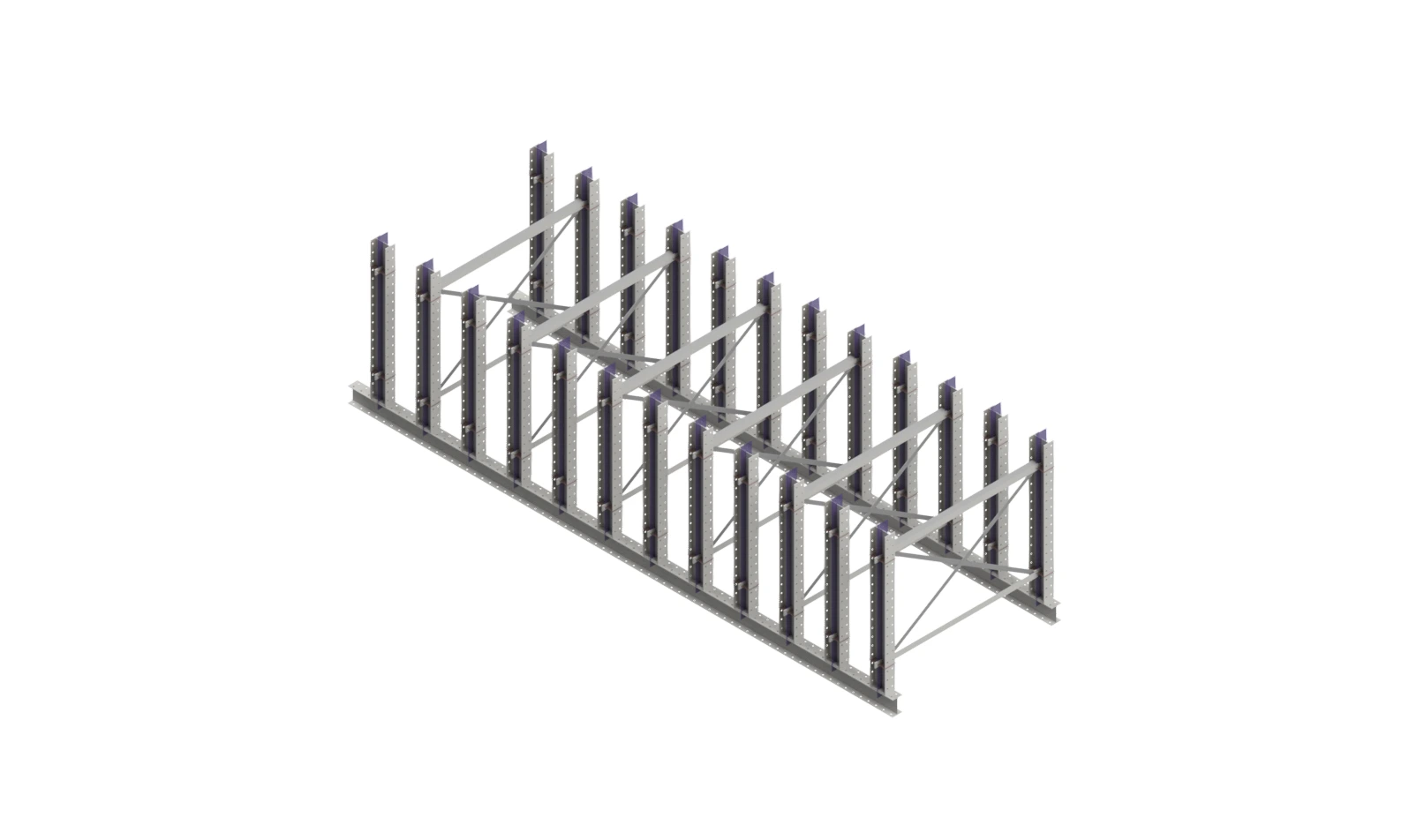

Stanchion Rack
Cantilever vs Floor Storage
Pipe stores well on both. The right choice depends on length, weight, and how you pick, and many operations use a combination of both.
- Cantilever: Has open arms for long individual runs picked from the front; best for frequent access to specific diameters and elevated, space-saving storage
- Floor or stanchion: Has contained ground-level bays for heavy or bundled pipe loaded; best for the heaviest bundles and high-turn stock
- All systems:
- Keep round stock contained and prevent roll-off
- Design gives forklifts, cranes, and side loaders clear access
- Handle your exact diameters, lengths, weights, and how you store and handle materials
Structural specifications
Standard construction
- Structural I-beam construction for strength and lateral rigidity
- Support loads from 2,000 to 40,000+ lbs per arm or bay
- Bolt-together brace systems with predrilled baseplates for secure floor anchoring
Available options
- Cantilever: Arm and base stop bars, with or without chains, to retain round stock
- Floor or stanchion: Divided lanes for mixed diameters, grades, and materials
- Hot-dip galvanized coating for corrosion protection (indoor or outdoor)
Storing steel and PVC runs of many diameters, some picked individually and some by the bundle? That is exactly the kind of requirement our engineering team designs around. Share your specs, and we will scope it!
Best Solution for Pipe & Tube Operations
Not sure which fits? Share your sheet sizes, bundle weights, and handling method, and we’ll design the right system.

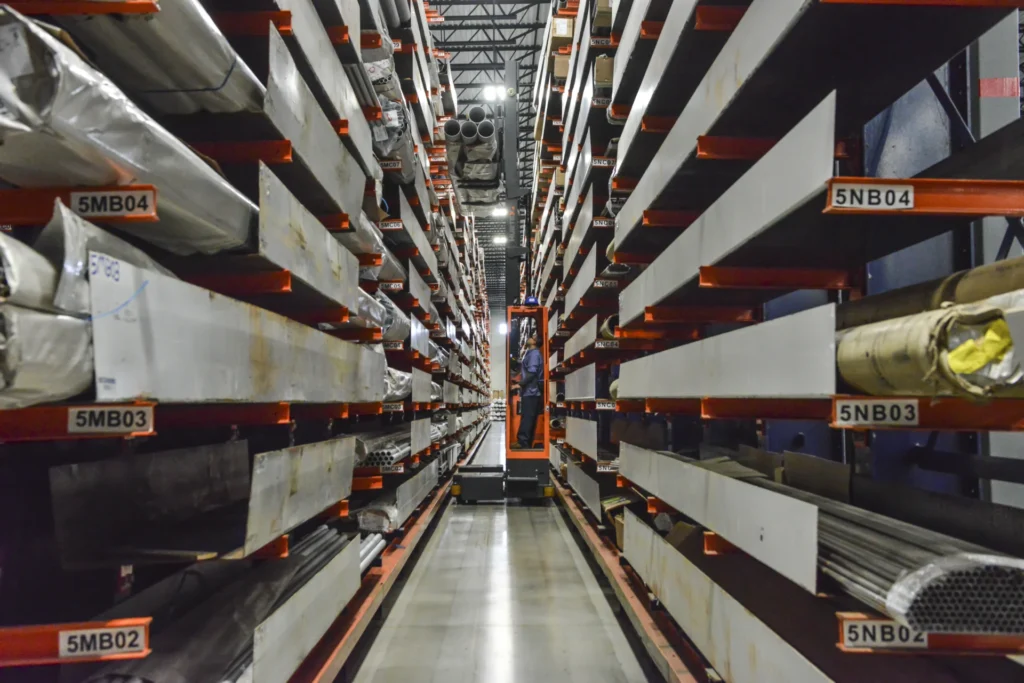

Cantilever Racking Systems
Open, unobstructed access so forklifts and cranes load and pull long individual runs from the front without columns in the way.

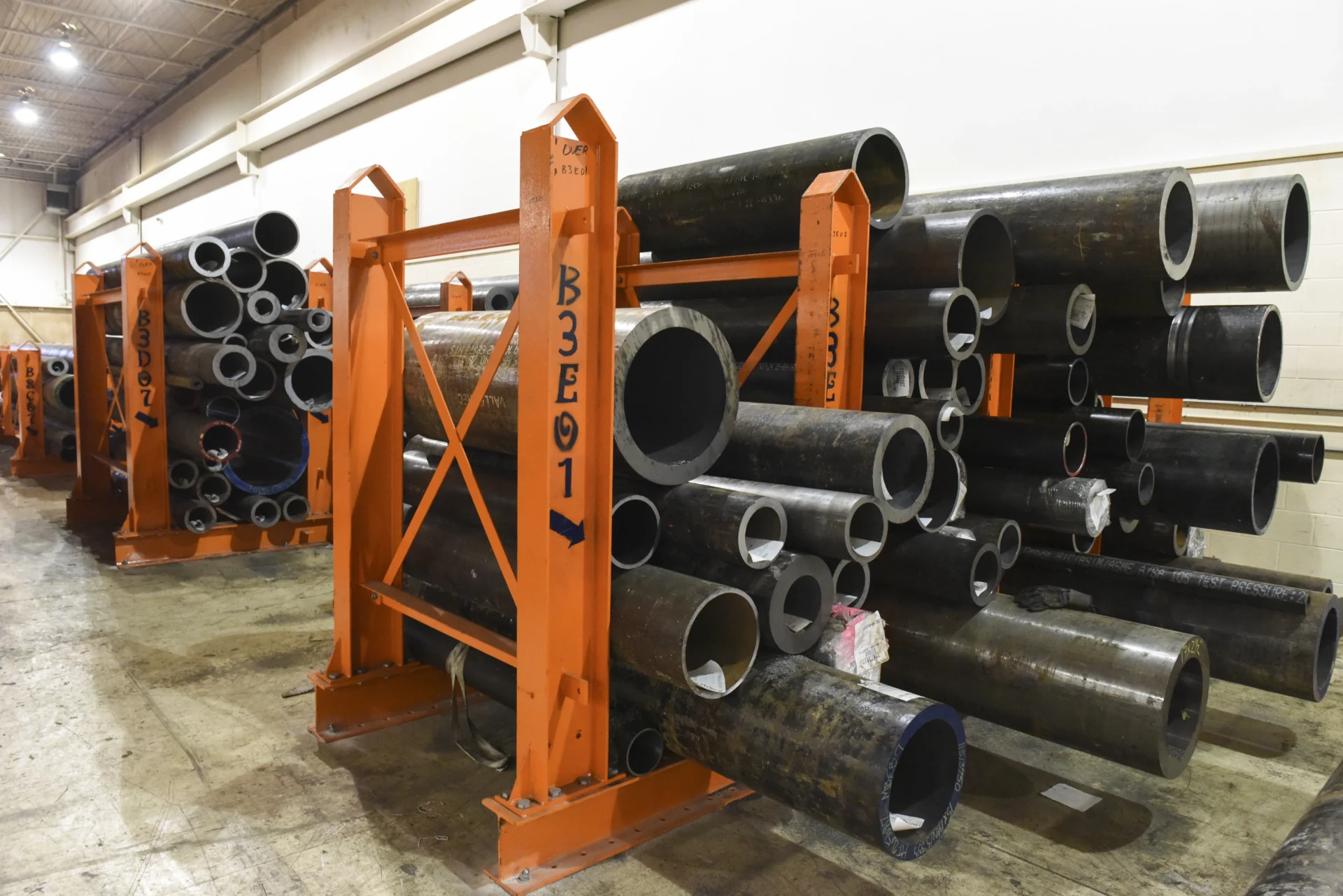

Floor Racking Systems
Upright posts form contained ground-level bays that hold heavy or bundled pipe loaded directly by forklift or crane.
From Concept to Installation
Dexco supports your project from early planning through installation and beyond. Our team works directly with yours to understand material flows, handling methods, and site constraints to ensure the final system works as intended from day one.
We coordinate design, fabrication, and installation to minimize operational disruption and deliver predictable timelines.
- Application-specific layout recommendations
- Clear installation planning and sequencing
- Layouts that adapt to seasonal storage needs
Request a quote
Tell us about your pipe storage needs so we can create the perfect solution together
