Dexco® Widespan Racking Systems
Dexco® widespan racking reduces downtime, extends service life, and ensures compliance. Our I-beam construction and custom configurations handle your specific loads—because generic solutions cost more when they fail.
Dexco® Widespan Configurations

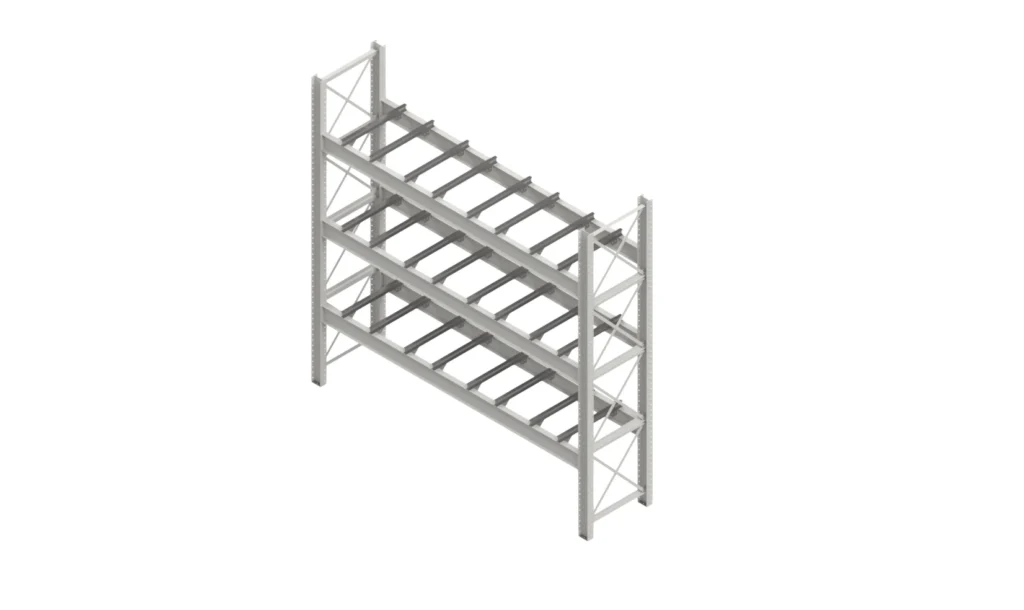

Forklift Entry Bars
Open bar design allows forks to pass through for direct pallet placement. Ideal for high-turnover operations requiring fast loading and unloading without lifting pallets onto solid decks.
Waterfall Shelves
Front-to-back wire or bar decking provides airflow and visibility while preventing items from falling through. Perfect for storing materials requiring drainage and ventilation.
Cradles
Contoured supports are designed to hold cylindrical or irregularly shaped items like coils, rolls, or drums. Prevents rolling and deformation while keeping materials secure and accessible.
Combination
Mix solid decks, bars, and specialized supports on a single rack system. Adapts to diverse inventory profiles and changing storage needs without replacing the entire structure.

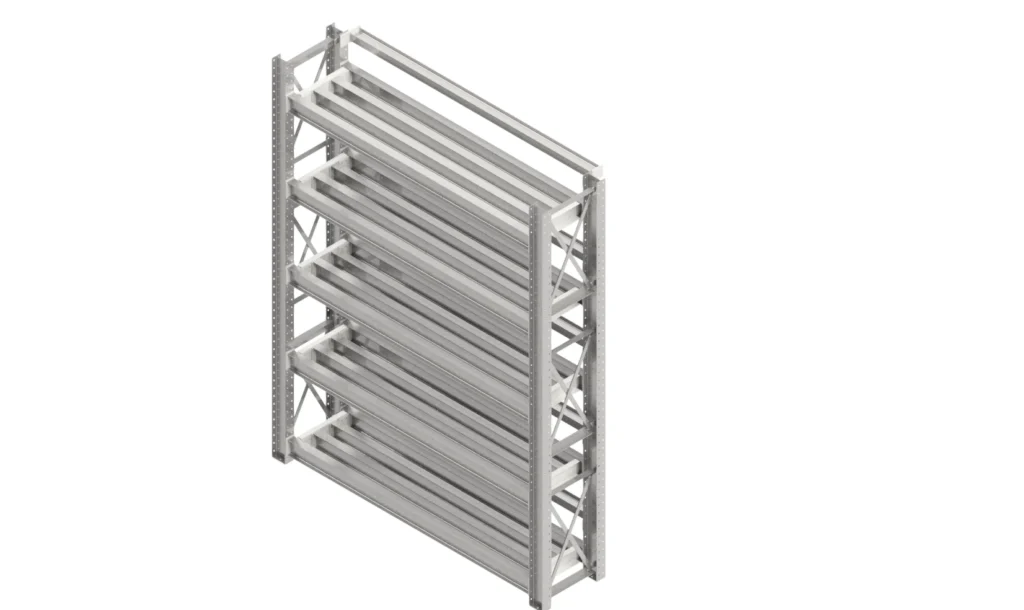

Open Beam Shelf
Exposed beam construction without decking allows for maximum versatility in material placement. Supports oversized items, custom pallets, or materials requiring airflow while maintaining structural integrity and easy reconfiguration.
Removable Shelf
Tool-free decking panels that lift out for fast reconfiguration or cleaning. Ideal for operations requiring frequent layout changes or seasonal inventory adjustments without permanent structural modifications.

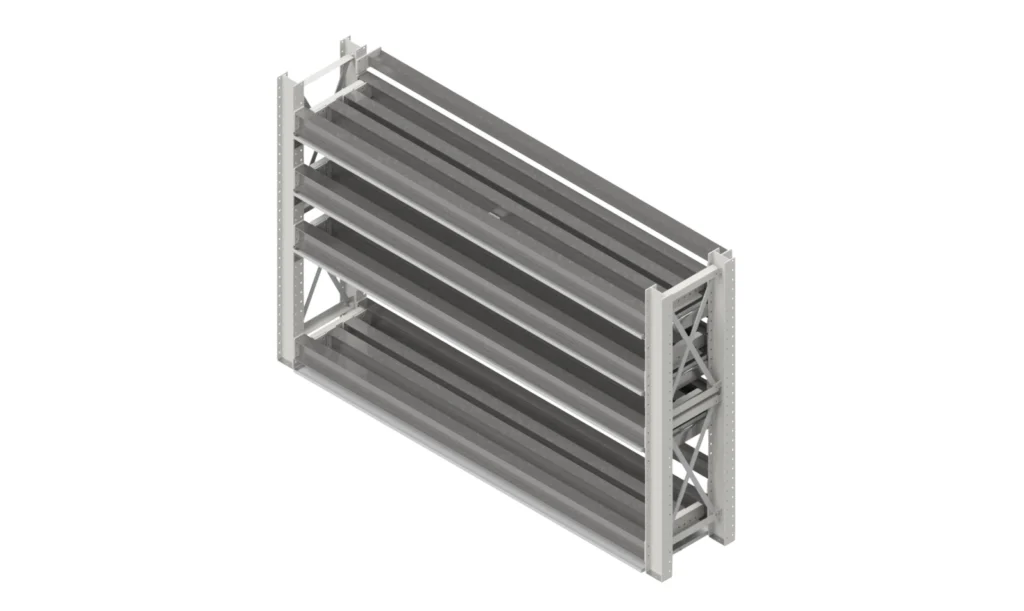

Oil Catch Pan
Integrated drip pans beneath shelving capture leaks and spills from stored equipment or containers. Essential for automotive parts, machinery storage, or any application requiring fluid containment and facility compliance.

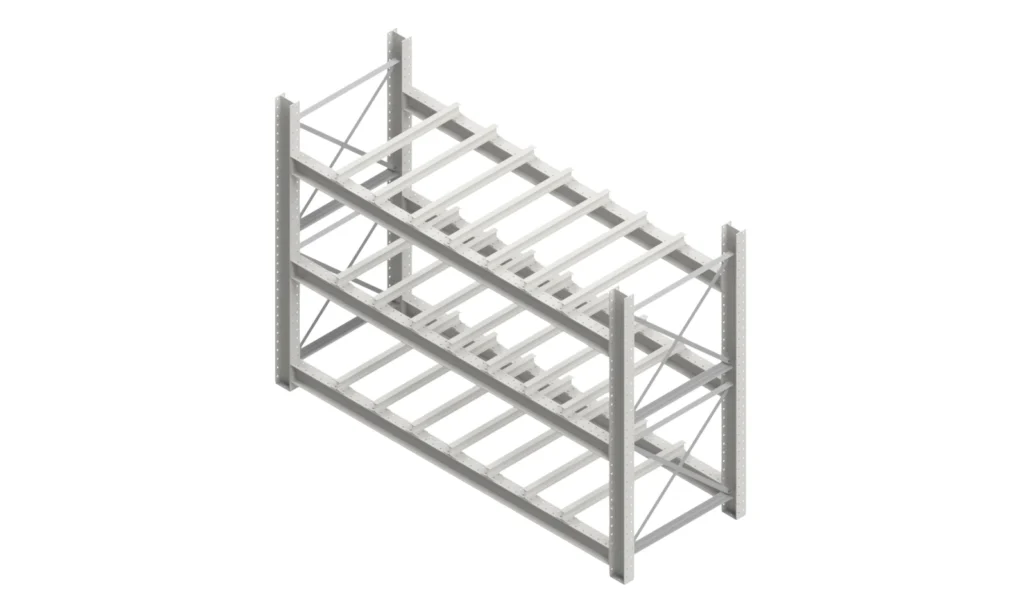

Extra Deep Shelf
Extended front-to-back depth accommodates oversized pallets, long materials, or multiple rows of standard loads. Maximizes cubic storage capacity while maintaining structural strength for heavy-duty applications requiring deeper reach.
Material Accessibility
- Racks can hold items on removable deck plates, fork entry bars, or open beams for easy location and access.
- Stow manufacturing equipment in various orientations to accommodate a more streamlined production workflow.
- Engineered racks optimize die access during loading and unloading, ensuring secure storage and resistance to damage.
- Improved warehouse safety by storing equipment off the floor, and utilizing vertical space efficiently, which reduces strain and accident risks.

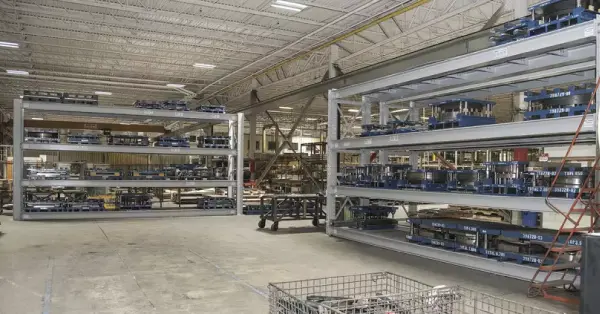

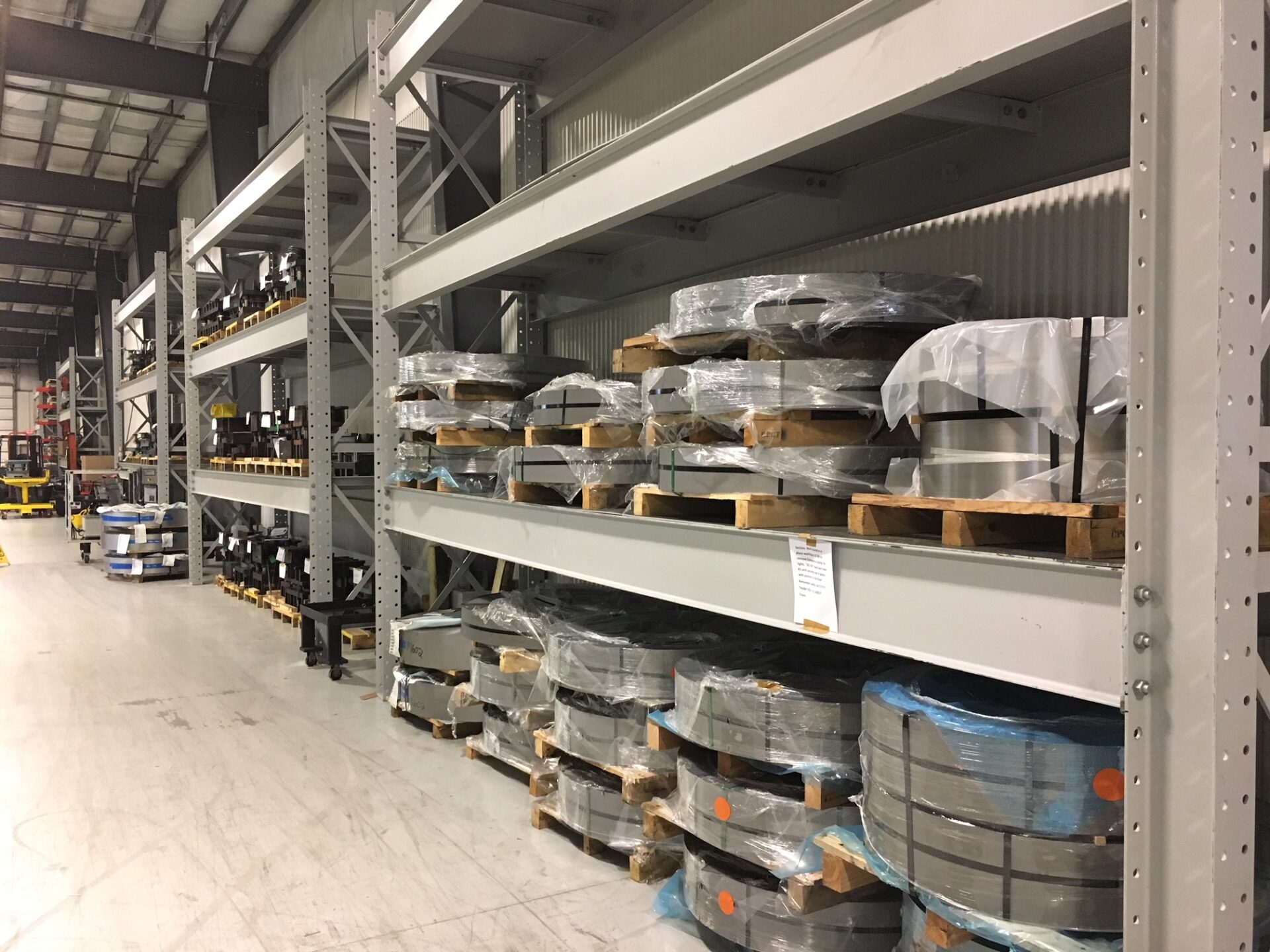

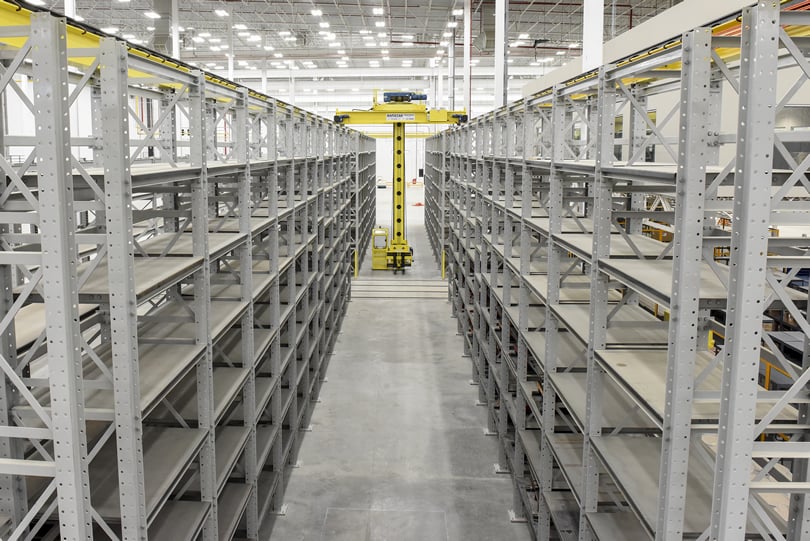

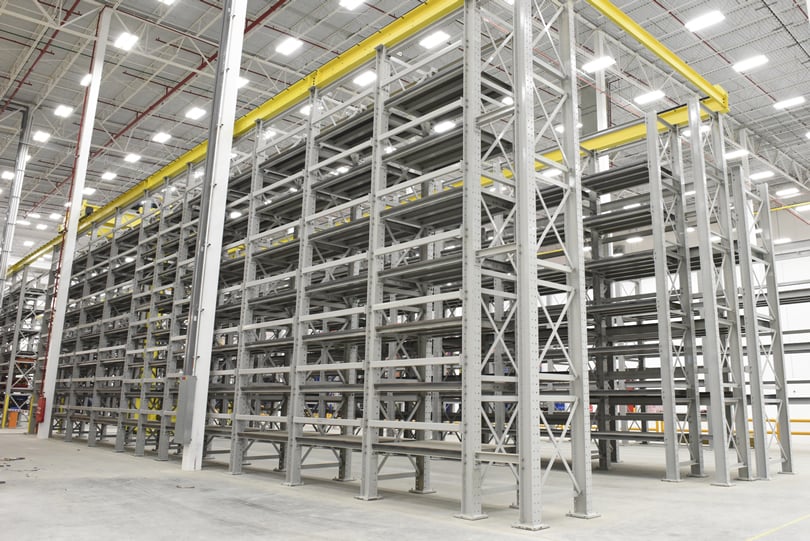

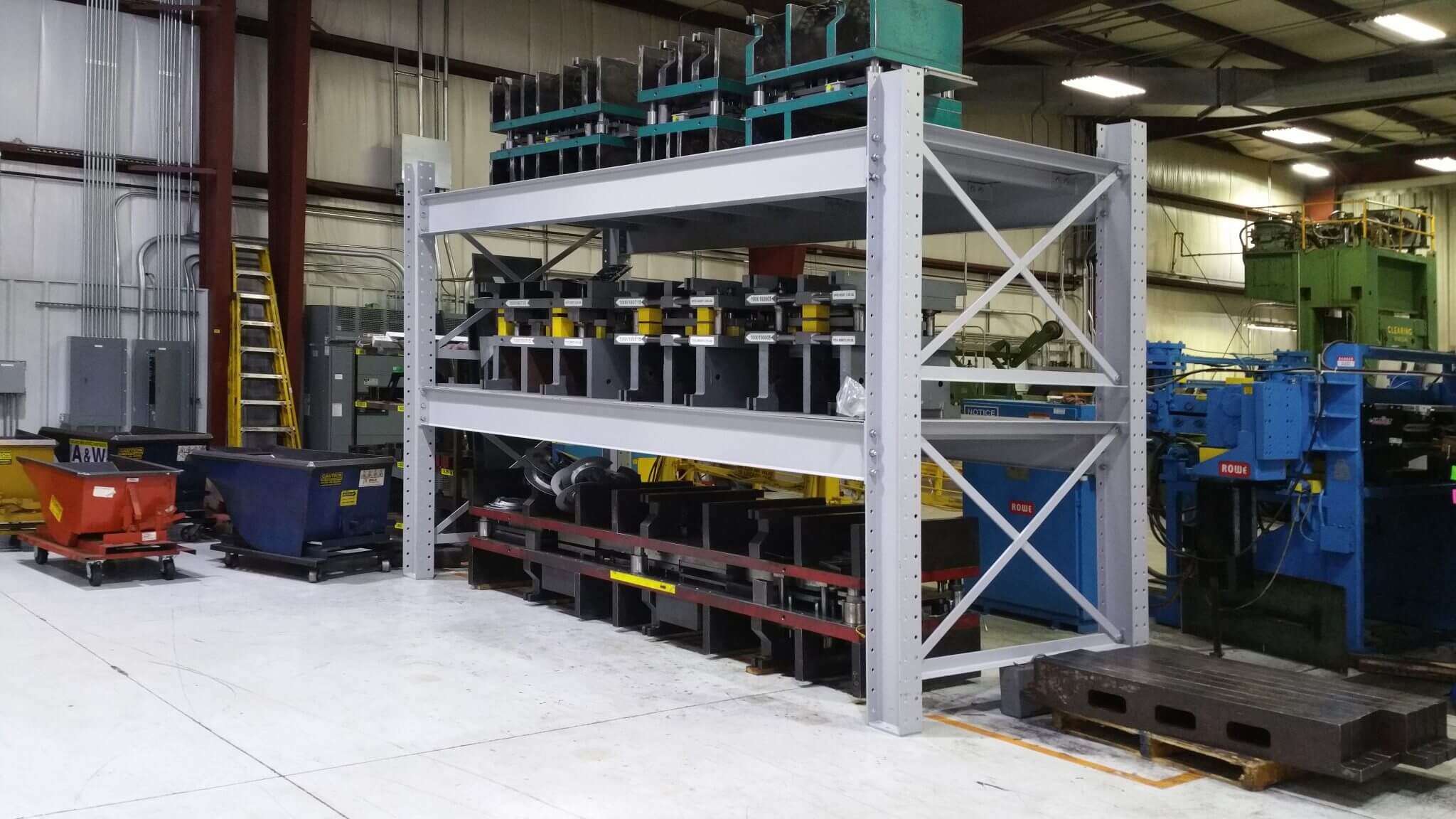

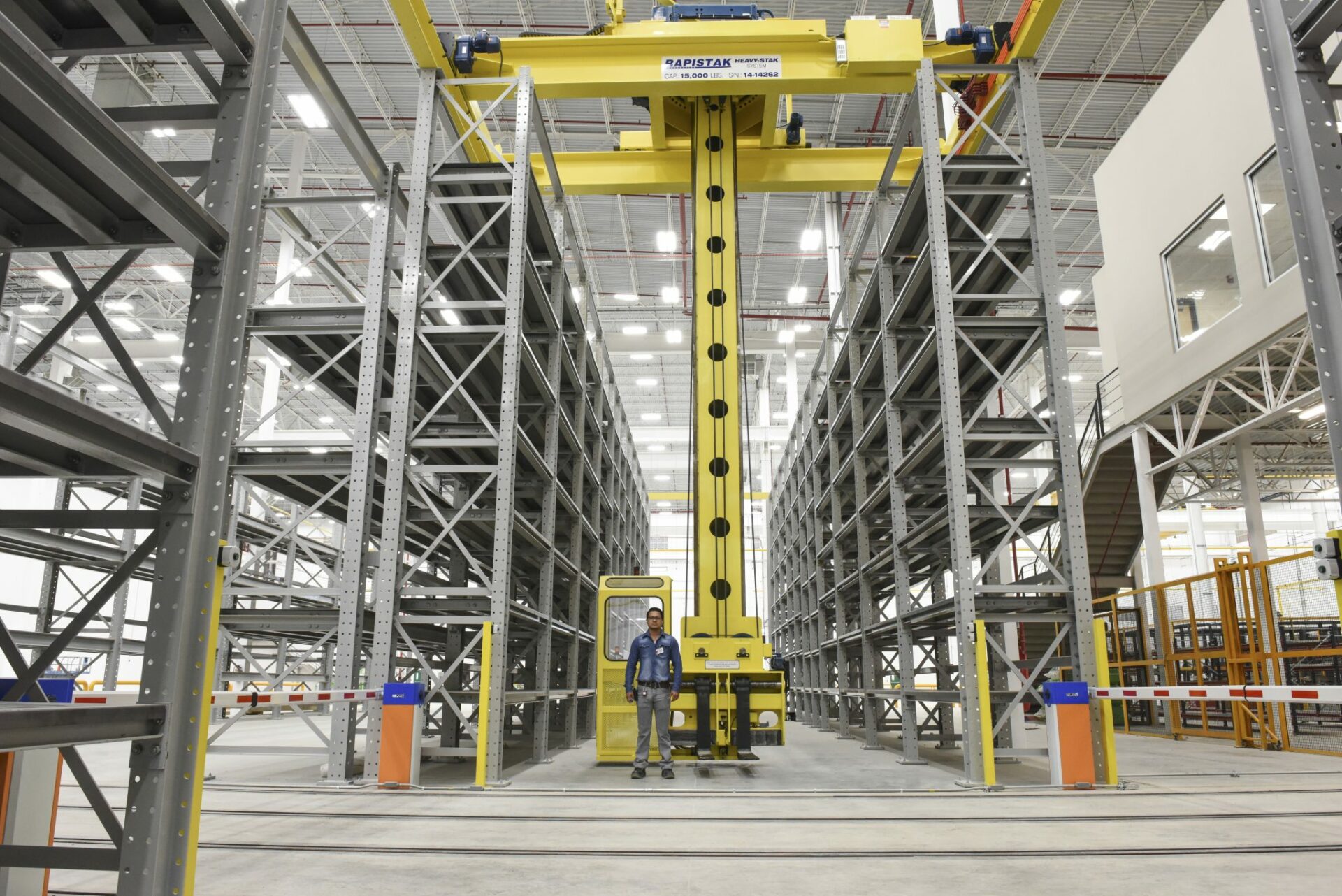

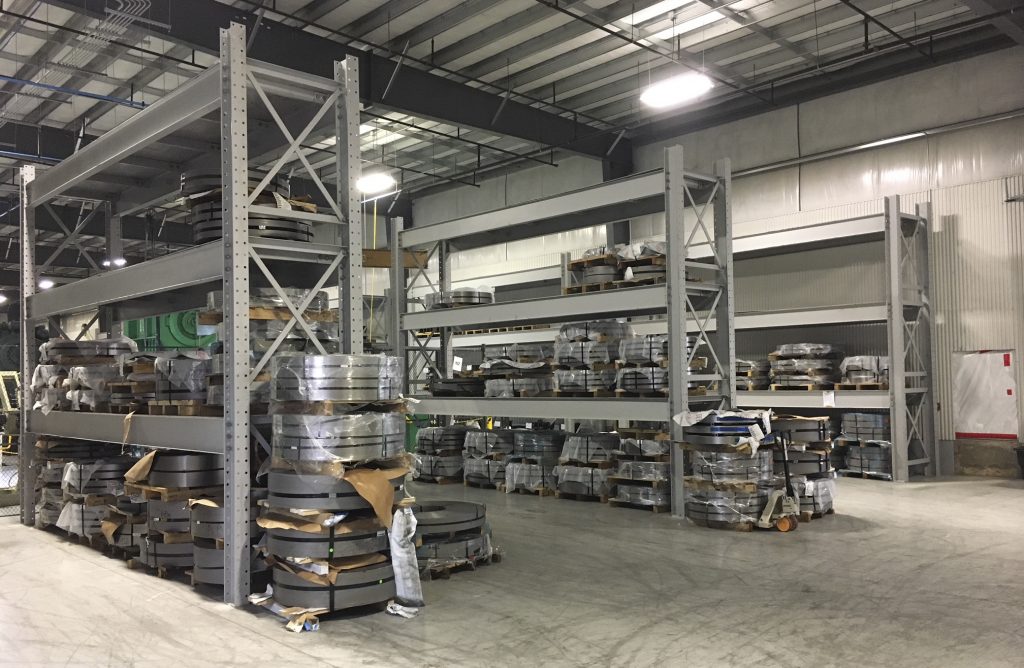

Featured Widespan Installations
Click on any image to enlarge
Product Specifications and Advantages
Standard Features
- Engineered to handle various sizes and weights, supporting loads ranging from 2,000 to 80,000 pounds per tier, or higher.
- Shelving configurations include removable deck plates, open beams, and fork entry bars to accommodate your specific storage needs.
- Adjustable bolted shelf beam construction accommodates changing storage needs, with beams adjusting in 4-inch increments.
- Shelf beams attach to columns using A325 structural bolts to maintain structural integrity. Predrilled holes in upright baseplates allow for secure anchor bolt connections to the floor.
- Modular design allows easy addition of more bays, with bundled columns and shelf beams for cost-effective shipping and installation.
- Includes a standard color factory-applied powder coat finish for rust and wear protection.
Customizable Features
- Storage configurations can be fine-tuned with 3-inch increment adjustments for a more personalized approach.
- Prevent stored items from being pushed off the back of the shelf with our backstop beams.
- Choose from standard designs for efficiency and shorter lead times or opt for custom engineering for unique features with longer lead times.
- Hot-dip galvanized coating for superior protection against corrosion and damage.
Technical Data
Specs
Buyer Resources
Standard Components
Click to enlarge
Design Options

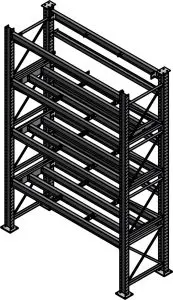

Die Rack with Bolted Rear Stop Beam

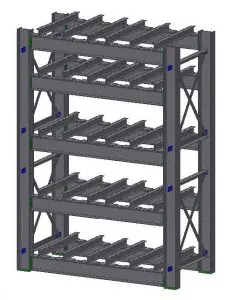

Die Rack with Fork Entry Bars

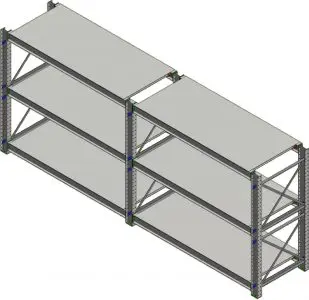

Solid Shelf Tool and Die Rack
Success Stories
Common Widespan Applications
- Boat Manufacturers
- Commercial Good Manufacturers
- Construction Equipment Manufacturers
- Electronics Manufacturers
- Extrusion Die Manufacturers and Suppliers
- Industrial Manufacturers
- Locomotive Part Fabricators
- Machine Shops
- Metal Fabricators
- Original Equipment Manufacturers
- Stamping and Injection Mold Companies
- Tool and Stamping Die Manufacturers
Widespan FAQs
What is widespan racking?
Widespan racking is a versatile shelving system designed for storing pallets, bulky items, and materials that don’t fit standard pallet rack configurations. It features wide beam spans and customizable decking options like solid shelves, forklift entry bars, and cradles to accommodate diverse storage needs.
What’s the difference between forklift entry bars and solid shelves?
Forklift entry bar shelves feature open bars that allow forks to pass through for direct placement, eliminating the need to lift inventory onto the shelf. Solid shelves provide a complete surface for storing loose items, pallets, boxes, or materials requiring full support underneath.
How much weight can widespan racks hold?
Dexco Widespan racks typically support 1,000 to 80,000+ pounds per shelf level, depending on beam length, upright spacing, and decking type. Each system is engineered to your specific load requirements with appropriate safety factors built in.
Can widespan racks be used outdoors?
Yes. Dexco widespan racks can be used outside by using a hot-dip galvanized finish to resist corrosion, UV damage, and temperature extremes. They’re engineered for long-term performance and commonly used near airport maintenance hangars, construction material facilities, and open-air staging areas.
Can I mix different shelf types on the same rack?
Yes. Combination shelving allows you to use forklift entry bars, waterfall decking, cradles, and solid shelves on different levels of the same rack system. This flexibility lets you adapt to changing inventory without replacing the entire structure.
What are cradles used for in widespan racking?
Cradles also known as saddles are contoured shelf supports designed to hold cylindrical or round materials like coils, rolls, drums, or pipes. They prevent items from rolling and maintain shape integrity while keeping materials secure and easily accessible.
