Dexco® Coil Racking Systems
Our durable coil racks provide secure vertical storage, easy accessibility, and protection for your materials. Constructed from structural steel, they deliver superior quality and strength. Need to store 80,000-pound coils stacked four high? Count on us for a tailored solution.
Safe Handling
Various forklift accessibility options ensure swift, damage-free loading and retrieval.
Floor Optimization
Expand your manufacturing floor space while creating a safer operational workflow.
Coil Protection
Preserve coil condition with our cradle-style construction and secure beam ledges.
Material Accessibility
- Enables easy-access storage without relying on LIFO (last-in, first-out) methods.
- Eliminates coil damage, such as creasing and flattening, that results from vertical stacking.
- Provides flexible production storage options: materials can be stored in “eye-to-the-sky” or “eye-to-aisle” positions for efficient decoiler loading.
- Storage and retrieval transport is compatible with forklifts, booms, side loaders, stacker-cranes, and automated retrieval systems.
- Enhances safety standards by storing coils in elevated, secure cradles to prevent movement or roll away incidents.
Product Specifications and Advantages
Standard Features
- Built using structural I-beam racking with bolt-together bracing systems for lateral rigidity.
- Full-depth coil cradles handle various sizes and weights, supporting loads ranging from 2,000 to 80,000 pounds per shelf, or higher.
- Adjustable bolted shelf beam construction accommodates changing storage needs, with beams adjusting in 4-inch increments.
- Shelf beams attach to columns using ASTM A325 structural bolts. Predrilled holes in upright baseplates allow for secure anchor bolt connections to the floor.
- Modular design allows easy addition of more bays, with bundled columns and shelf beams for cost-effective shipping and installation.
- Includes a standard color factory-applied powder coat finish.
Customizable Features
- Shelf beam adjustment in 3-inch increments, options for backstop beams, and single or double-sided models.
- Hot-dip galvanized coating for superior protection against corrosion and damage.
- Floor-mount designs: coils stacked on beam-supported cradles.
- Slit coil designs: coils rest in shared cradle, separated by vertical posts for stability.
- Cantilever designs: coils hang on cantilevered arms in eye-to-the-aisle orientation.
- Widespan designs: palletized coils rest on secure shelves that require minimal vertical column support.
Technical Data
Specs
Buyer Resources
Standard Components
Click to enlarge

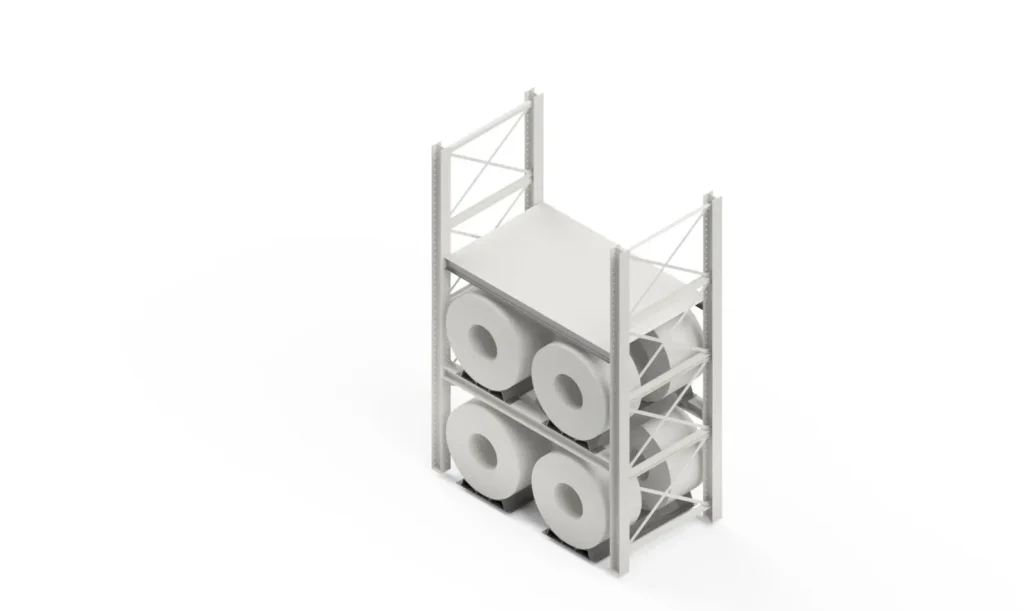

Design Options

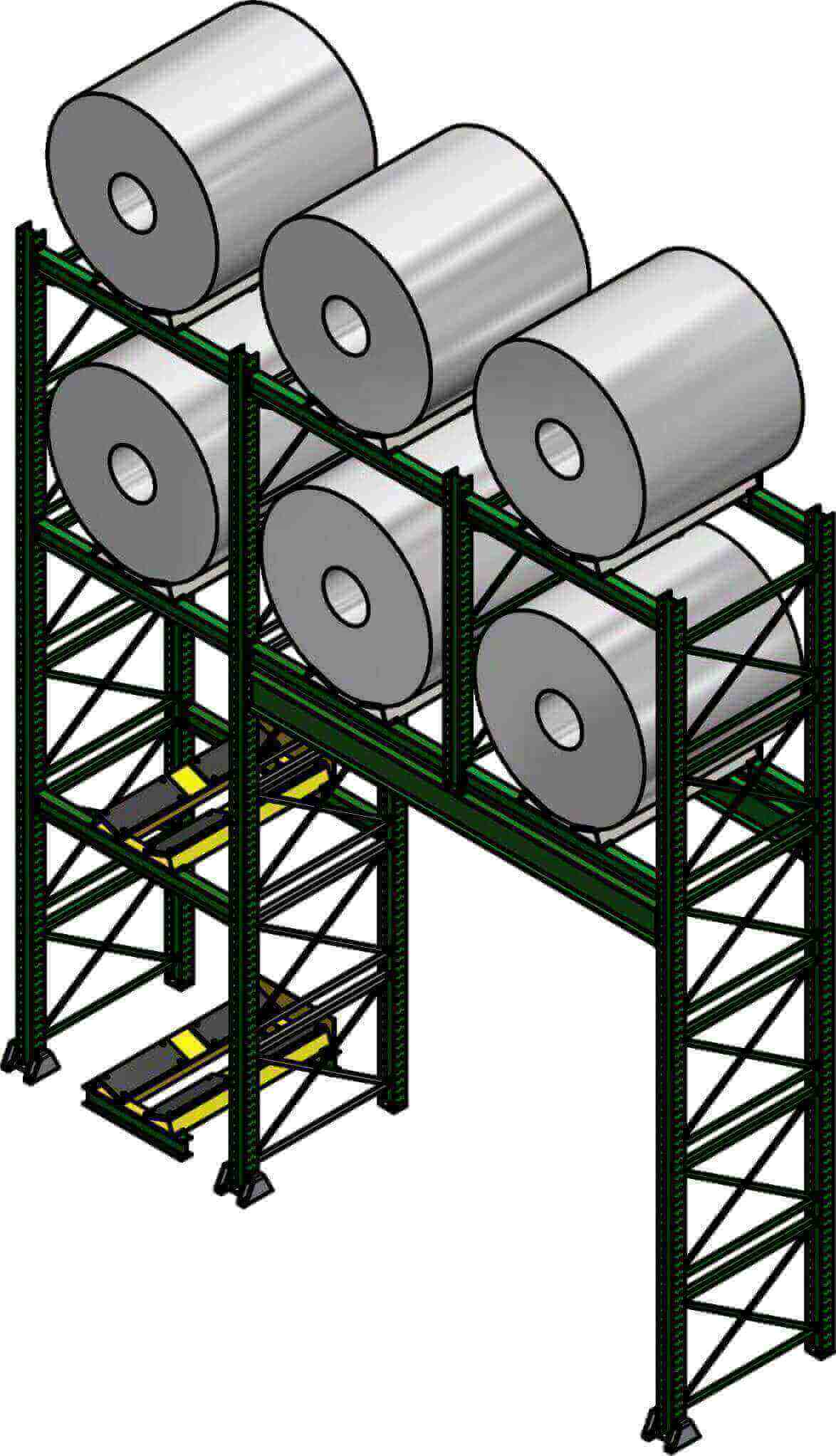

Cradle Coil Rack

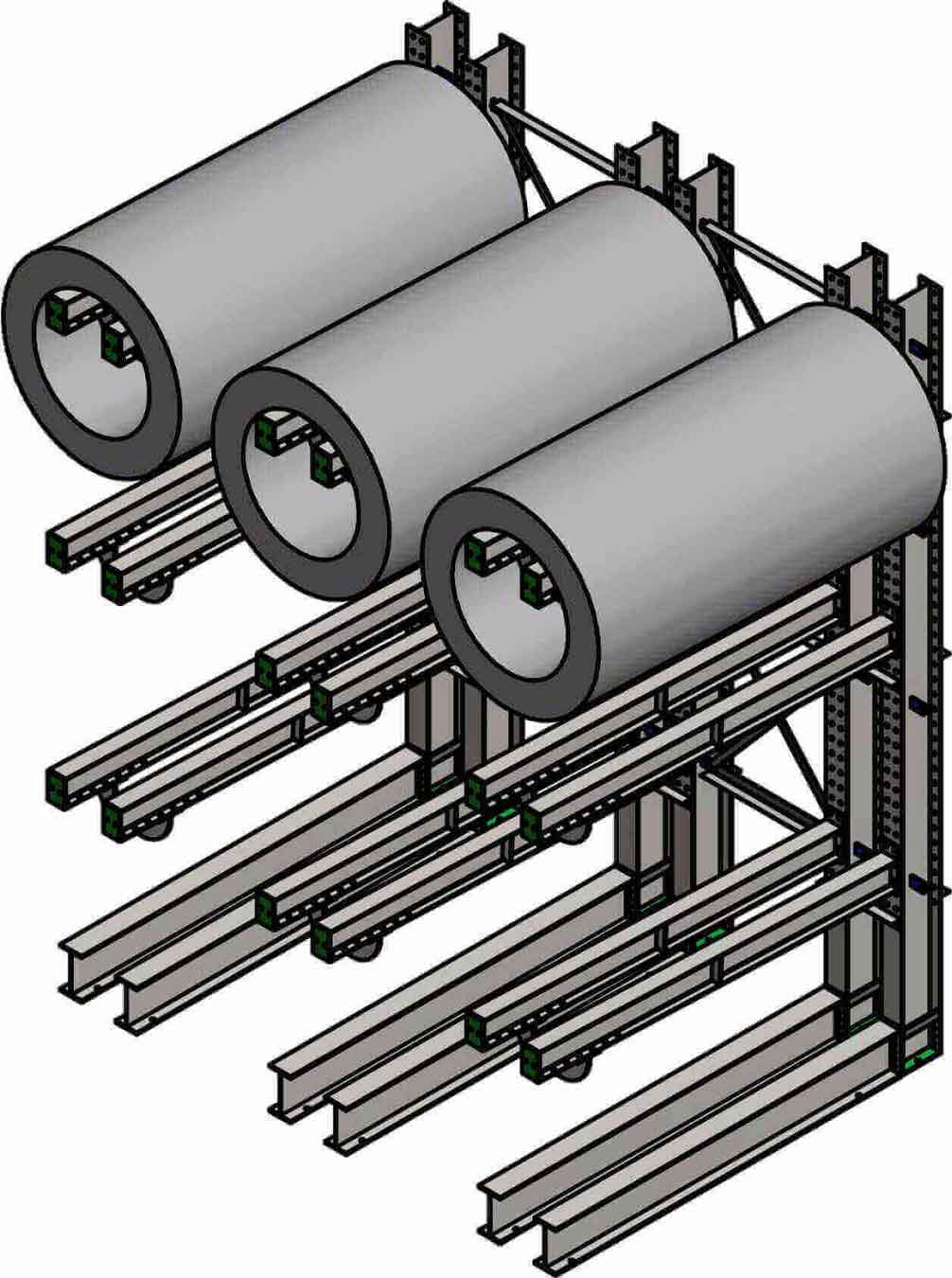

Dual Arm Coil Rack

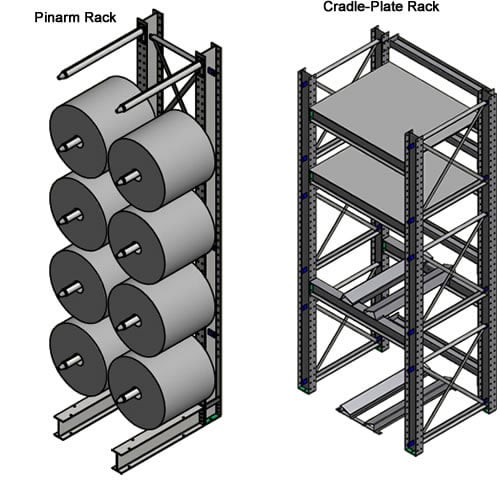

Multiple Configurations Available

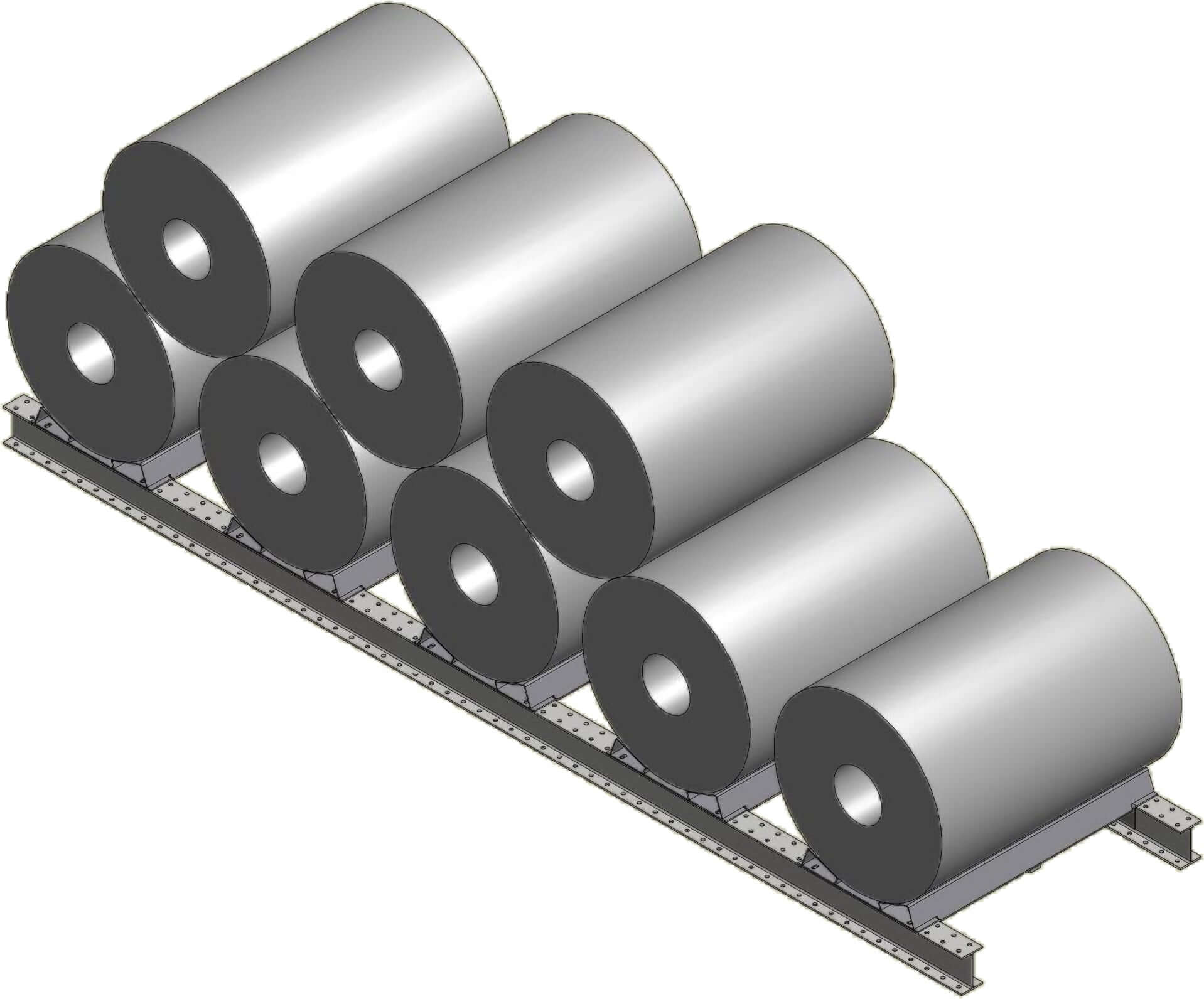

Floor Beam Coil Rack

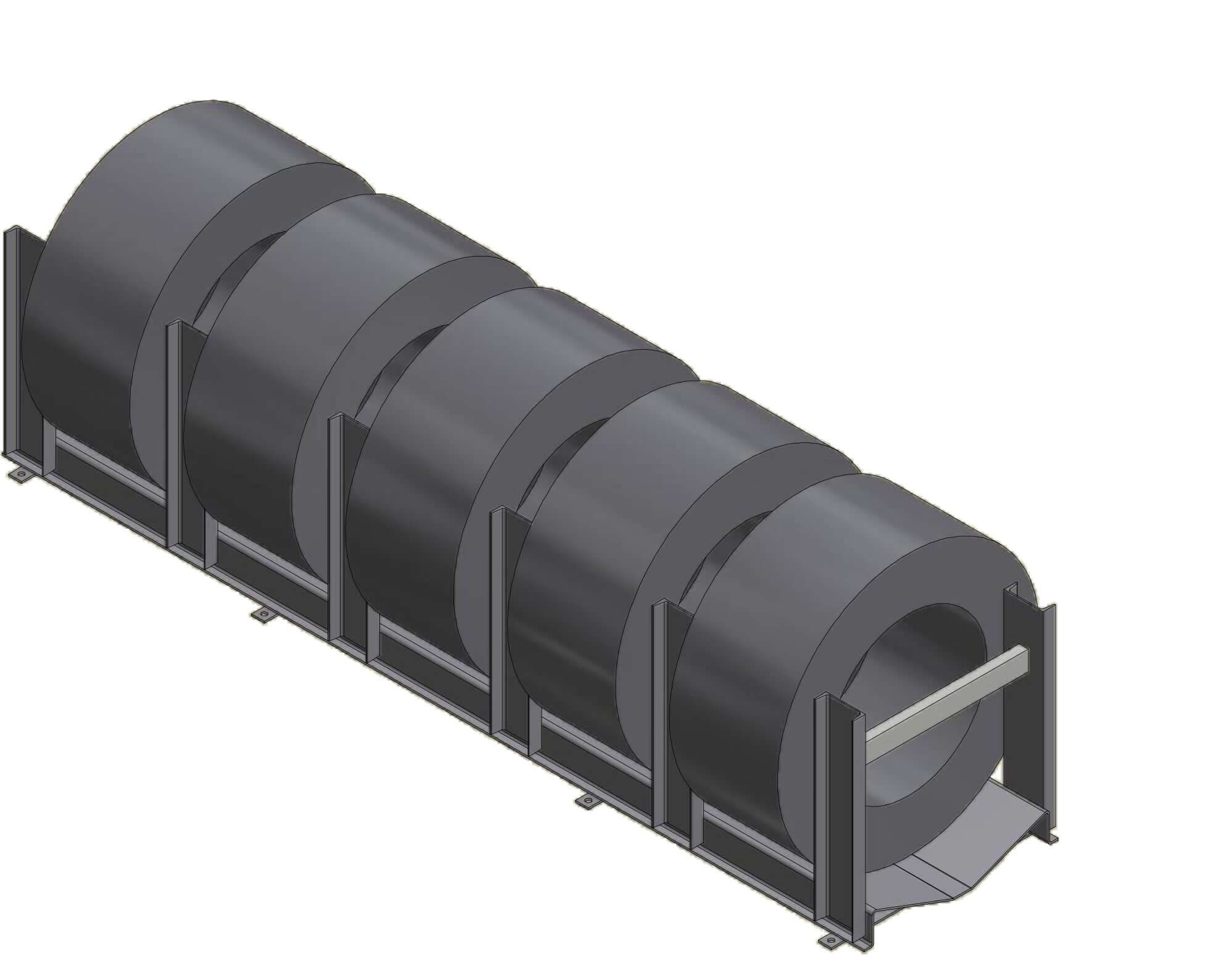

Vertical Coil Rack

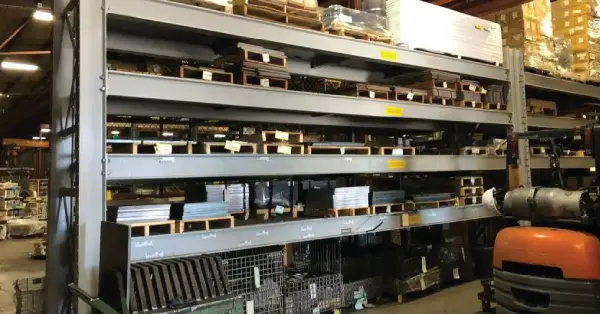

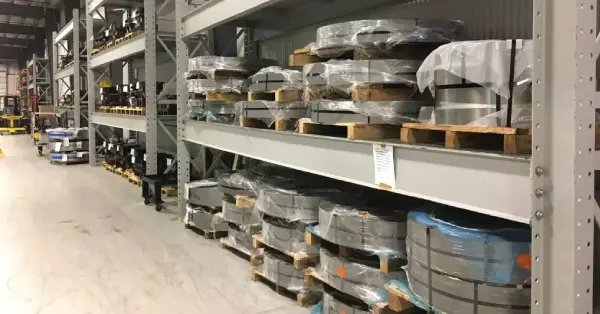

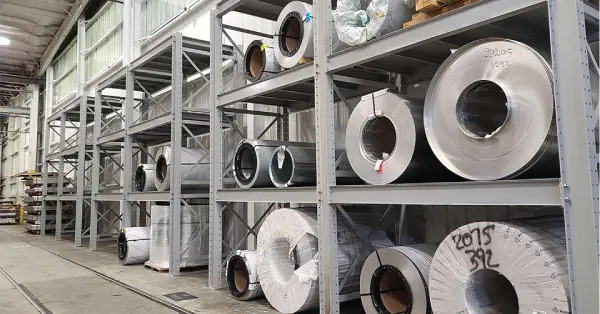

Success Stories
Applicable Industries
- Aerospace
- Aluminum
- Appliances
- Automotive
- Building Materials
- Defense
- Electric Components
- Metal Packaging
- Metal Stampers
- Steel Mills
- Steel Service Centers
- Toll Processors
- Trailer Manufacturers
Recent News

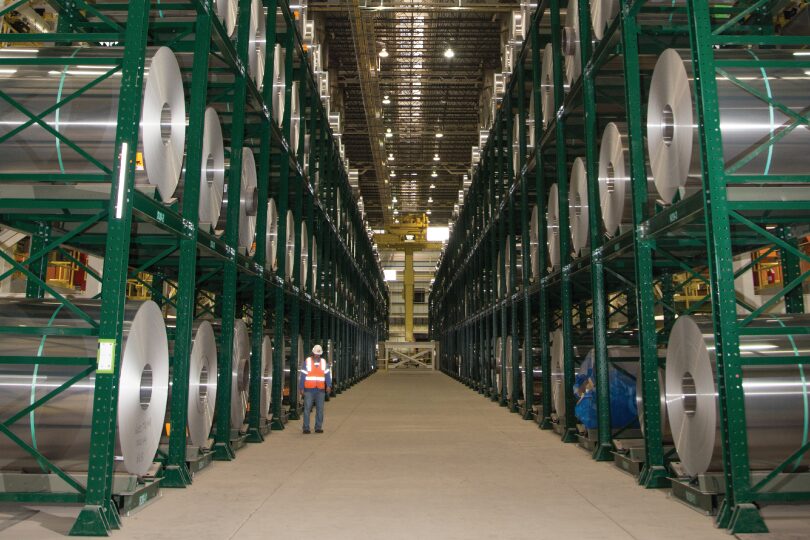

The Advantages of Coil Rack Storage for Metal Stamping Operations
